DENALI6168μ

※For hospital use only.

-　MRI Patient MonitorDENALI6168μ

DENALI6168μ is a patient monitor that can be used safely and securely in an MRI environment. DENALI6168μ all models are equipped with the PIi(Perfusion Index indicator) function required to grasp the measurement status.

Two types of probes are available.
It can be used widely from infants to adults depending on the application.
・Flexible optical fiber probe
・Optical Fiber clip probe

Two types of probes are available.

Two types of probes are available.

（Left）Optical Fiber Clip Probe / （Right) Flexible Optical Fiber Probe

This module uses mainstream measurements.

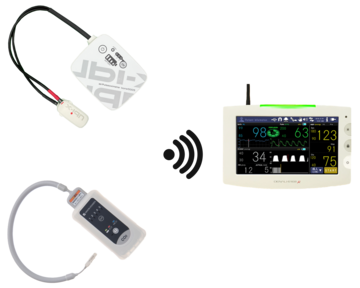

Data is transmitted from the sensor to the main unit via Bluetooth.
The module, which was developed in collaboration with Nihon Kohden Co., Ltd., uses a mainstream method of measurement with an adapter attached underneath. Data is sent from the module to the DENALI6168μ in real time. The ideal form of EtCo₂ measurement has been completed.

This module uses mainstream measurements.

This module uses mainstream measurements.

Adapter that can be selected according to the application.
Tube type and rubber type adapters are available for attaching to the sensor. The tube type can administer oxygen as a cannula. The rubber type can be used by covering it with an oxygen mask from above.

Adapter that can be selected according to the application.

Adapter that can be selected according to the application.

cap-ONE Nasal Adapter for adults to children manufactured by Nihon Kohden Co., Ltd.

Compact and lightweight design
DENALI6168μ is a lightweight design with a weight of 1,815g including a battery.
A compact, thin and sophisticated form with a gentle curve. Equipped with eyebolts on the housing.
You can use it to tie it with a string to prevent it from sticking to MRI itself, or to attach a USB strap.

Compact and lightweight design

Compact and lightweight design

- specification -

Model SpO₂ NIBP EtCO₂ BLE
DNLμ-O2・DNLμ-O2/air DNLμ-O2 ●
DNLμ-O2/air ● ●
DNLμ-O2BP・DNLμ-O2BP/air DNLμ-O2BP ● ●
DNLμ-O2BP/air ● ● ●
DNLμ-O2ec・DNLμ-O2ec/air DNLμ-O2ec ● ●
DNLμ-O2ec/air ● ● ●
DNLμ-O2ecBP・DNLμ-O2ecBP/air DNLμ-O2ecBP ● ● ●
DNLμ-O2ecBP/air ● ● ● ●
